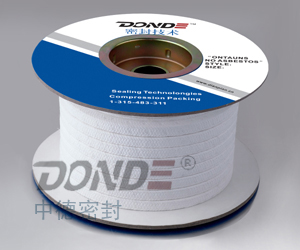

Multiple
PTFE(Teflon) Filament
Packing
Item No.:ZD-1202
Description:PTFE
filament packing is braided with PTFE filament which is impregnated
piece by piece with PTFE dispersion. Flexibility,PTFE filament packing
has almost complete chemical inertia.PTFE filament packing has
dimensional stability.PTFE filament packing has low friction coefficient
to compression. And PTFE filament packing also has excellent resistance
to compression.PTFE filament packing are one of the best available
packing in the industrial field.It is suitable for all the chemical
compounds (excepting cast alkaline metals and the gaseous fluorine).And
this kind of gland packing can be used in alternative and rotary motions
shafts operating at high peripheral speed, rod, pistons, valve stems,
expansion joints, etc.
Main Specification:
|
Temperature |
-180℃~+260℃ |
|
Pressure |
10MPa |
|
PH Range |
0-14 |
|
Linear Speed |
10M/S |
|
Size |
3*3mm-60*60mm（or as request） |
Parameter:
|
INCH ″ |
1/8 |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
11/16 |
3/4 |
7/8 |
1 |
|
MM |
3 |
4 |
5 |
6 |
8 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
|
G/ M |
16.2 |
28.8 |
45 |
64.8 |
115 |
180 |
210 |
245 |
340 |
440 |
560 |
695 |
845 |
1095 |
How to order：
|
Item |
Order Code |
|
Pure PTFE Fibre Braided Packing |
ZD-P1200 |
|
PTFE Fibre Packing With Lubrication |
ZD-P1201 |
|
Mutiple PTFE Filament Packing |
ZD-P1202 |
|
TFE
Packing With Silicon Rubber Core
|
ZD-P1203 |
|
PTFE
Packing With Kevlar Fibre Corner |
ZD-P1204 |
|
PTFE Packing with Kynol fiber
corners |
ZD-P1205 |
For more information,please contact with us
directly,thanks！
|
