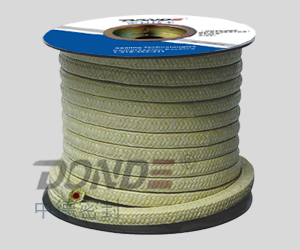

Kevlar
Fibre Packing With Silicon Rubber Core
Item No.:ZD-P1401
Description: Kevlar Fibre Packing With Silicon Rubber Core is combines a resilient
silicone rubber core with the heat resistanted Dupont's Kevlar fiber.
The elastic rubber core gives the packing better memory, allowing it to
withstand radial shaft motion and vibration while maintaining excellent
leakage control with minimal gland adjustments. Kevlar Fibre Packing
With Silicon Rubber Core is easy to use and break-in and this packing is
designed for use in abrasive service applications such as agitators,
blenders, mixers, washers, pulpersor any other applications that undergo
shaft deflection in normal operating conditions.
Main specification:
|
Temperature |
-100℃~+260℃ |
|
Pressure |
Rotating 2.5MPa,10MPa |
|
PH Range |
2-13 |
|
Linear Speed |
25M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
Kevlar Fibre Braided Packing |
ZD-P1400 |
|
Kevlar Fibre Packing With Silicon
Rubber Core |
ZD-P1401 |
|
Nomex Fibre Braided Packing |
ZD-P1410 |
|
Spun Kevlar Fiber
Packing |
ZD-P1430 |
|
Graphited Spun Aramid Fiber Packing |
ZD-P1431 |
For more information,please contact with
us directly,thanks！
|
