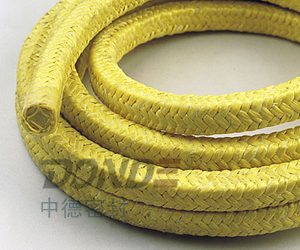

Spun Kevlar Fiber Packing
Item No.:ZD-P1430
Description:
Spun Kevlar Fiber Packing is
braided from high quality Dupont spun Aramid/Kevlar fiber with PTFE
Impregnation and lubricant additive. It shows good chemical resistance,
high elasticity and very low cold flow. It is wear resistant but no harm
to the shaft. Compared with other kinds of packing, it can resist more
severe media and higher pressure. The packing is also lubricated with a
silicone-based compound for quick and easy break-in.
Application:It is a
universal packing which can be used for pumps in all types of
industry such as chemical, petrochemical, pharmaceutical, food and
sugar industries, pulp and paper mills, power stations etc. It is
also a durable packing able to withstand granular and abrasive
applications, it is recommended for serve in superheated steam,
solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be
used uncooled up to 160°C.
It can be used as stand-alone packing
also combined with others as anti-extrusion ring.
Main specification:
|
Temperature |
-100℃~+280℃ |
|
Pressure |
25bar(revolving)
100bar(reciprocating) 200bar(flange) |
|
PH Range |
2-12 |
|
Linear Speed |
25m/s(revolving) 1.5m/s(reciprocating)
|
|
Density |
1.4g/cm3 |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
Kevlar Fibre Braided Packing |
ZD-P1400 |
|
Kevlar Fibre Packing With Silicon
Rubber Core |
ZD-P1401 |
|
Nomex Fibre Braided Packing |
ZD-P1410 |
|
Spun Kevlar Fiber
Packing |
ZD-P1430 |
|
Graphited Spun Aramid Fiber Packing |
ZD-P1431 |
For more information,please contact with
us directly,thanks！
|
